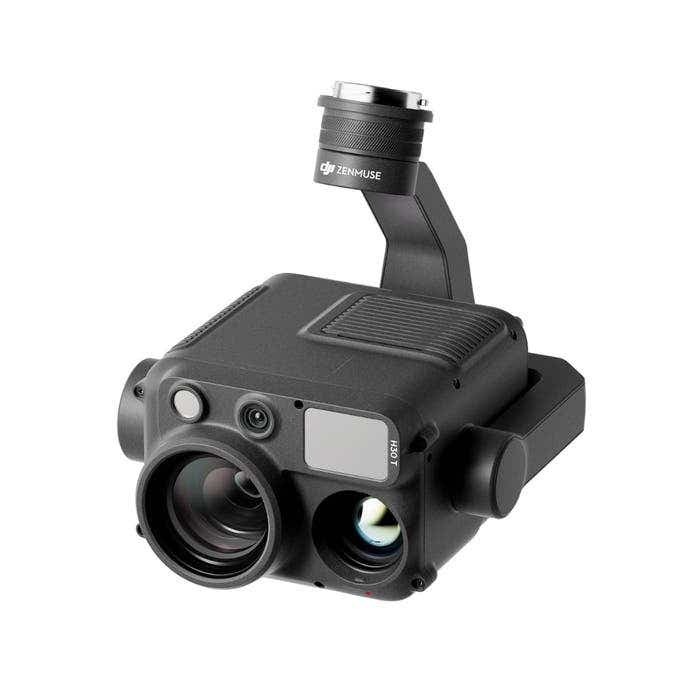

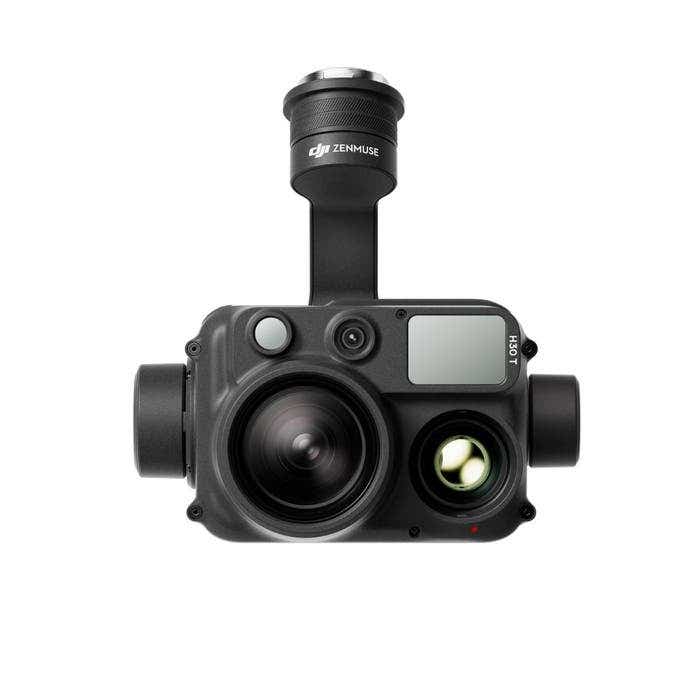

DJI Zenmuse H30T: Advanced thermal and zoom payload for enterprise operations

The DJI Zenmuse H30T is a multi-sensor enterprise payload designed for professionals who require dependable aerial intelligence across inspection, response, and monitoring missions.

It combines a 40 MP zoom camera, 48 MP wide-angle camera, 1280 × 1024 infrared thermal sensor, laser rangefinder, and NIR auxiliary light within a single stabilized gimbal.

Built for use on DJI Matrice 300 RTK, Matrice 350 RTK, and Matrice 400 aircraft, the H30T supports day and night operations in demanding environments.

Integrated multi-sensor payload capabilities

40 MP zoom camera: supports 34× optical and up to 400× digital zoom.
48 MP wide-angle camera: captures 24 mm equivalent imagery with 82.1° DFOV.
1280 × 1024 thermal imaging: enables accurate heat detection and analysis.
Laser rangefinder: measures targets from 9.8–9842 ft (3–3000 m).
Thermal sensitivity: ≤50 mK NETD supports detection of minor heat differences.
IP54-rated housing: supports operation in dust and light rain.
Broad temperature tolerance: operates from -4 to 122 °F (-20 to 50 °C).

Performance characteristics for professional operations

The Zenmuse H30T is designed to deliver consistent performance during extended professional use. Its 3-axis gimbal stabilizes imagery to ±0.002° during hover and ±0.004° in flight, helping maintain image clarity during precision inspections.

The zoom camera’s 7.1–172 mm focal range (33.4–809.3 mm equivalent) allows operators to capture fine detail from safe distances, reducing risk during inspections. Thermal gain modes support temperature measurement from -4 to 1112 °F (-20 to 600 °C), or up to 2912 °F (1600 °C) with an infrared density filter, enabling use across diverse operational scenarios.

Mission efficiency in real-world deployments

In field deployments, the Zenmuse H30T helps teams operate more efficiently by reducing the need for close approaches to hazardous environments. The integrated laser rangefinder provides distance accuracy of ±1.0 m beyond 1640 ft (500 m), improving spatial awareness during inspections and response missions.

Thermal tools such as spot, area, and center-point measurement allow operators to quickly identify anomalies. Night Scene mode, NIR illumination, and UHR infrared imaging maintain visibility in low- and no-light conditions.

Hardware and software synchronization

DJI Matrice 400: supported enterprise aircraft platform.
DJI Matrice 350 RTK: compatible inspection and response platform.
DJI Matrice 300 RTK: supported when operated with DJI RC Plus.
DJI Pilot 2: primary interface for control and imaging.
DJI Terra: supported for mapping and inspection workflows.
DJI FlightHub 2: enables centralized fleet coordination.

Common field applications

Emergency response missions: detect heat sources and assess evolving scenes.
Fire inspection support: monitor hotspots using thermal imaging tools.
Utility inspections: identify faults using long-range zoom imaging.
Solar asset monitoring: detect efficiency losses through thermal contrast.
Industrial safety checks: evaluate equipment temperatures remotely.
Law enforcement operations: maintain aerial overwatch with hybrid zoom.
Environmental surveys: observe wildlife with minimal disturbance.
Disaster recovery assessments: document damage safely from above.

Optimized for field deployment

The Zenmuse H30T is optimized for enterprise drone programs that prioritize operational reliability and long-term deployment. Its compatibility across multiple DJI aircraft platforms simplifies fleet standardization, while DJI Pilot 2 and enterprise software support predictable workflows.

The camera provides advanced sensing capabilities and enterprise-ready reliability for critical aerial operations. It is built for teams that depend on accurate, actionable data in challenging environments.
